PRODUCT APPLICATION & FEATURES

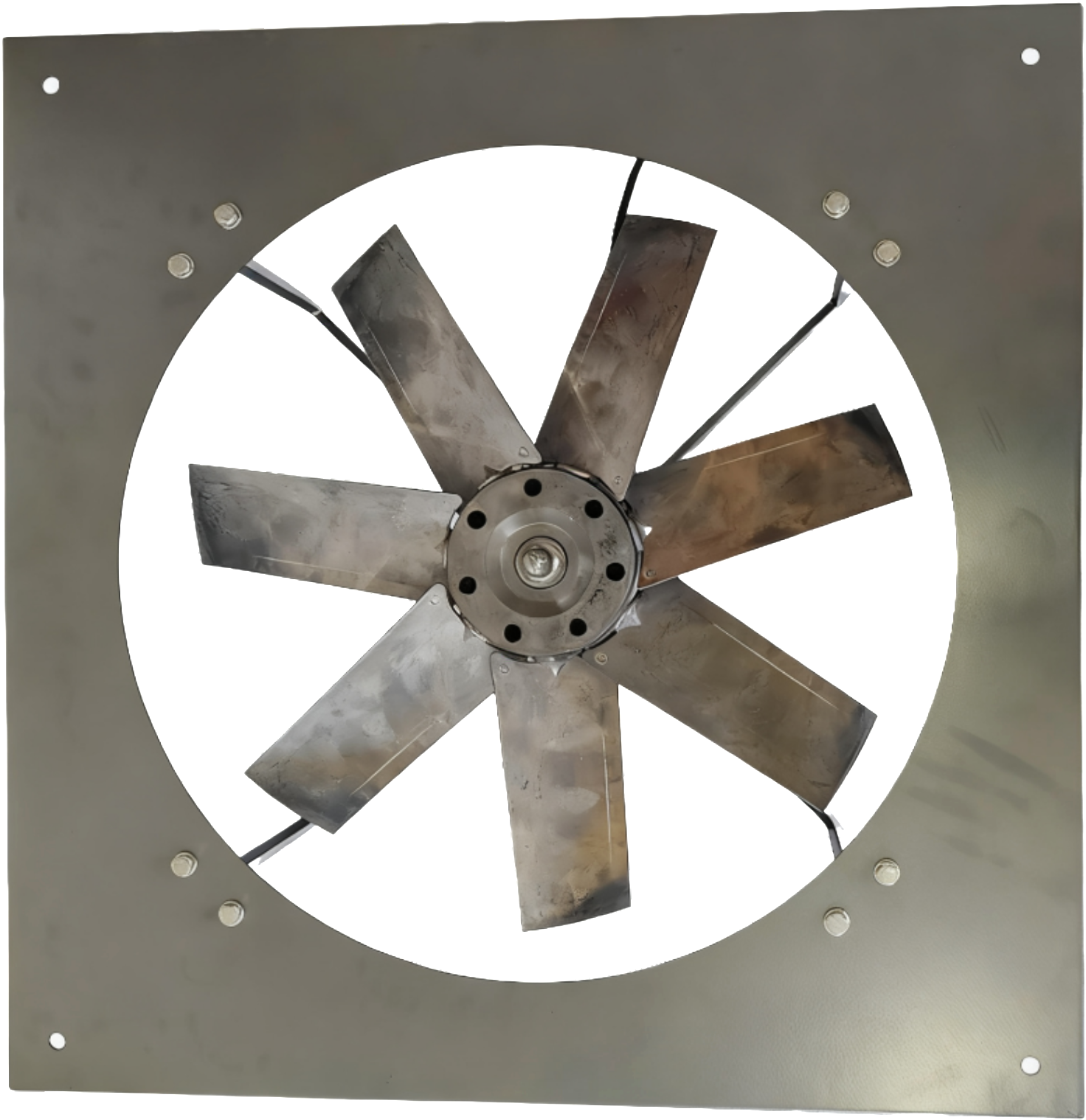

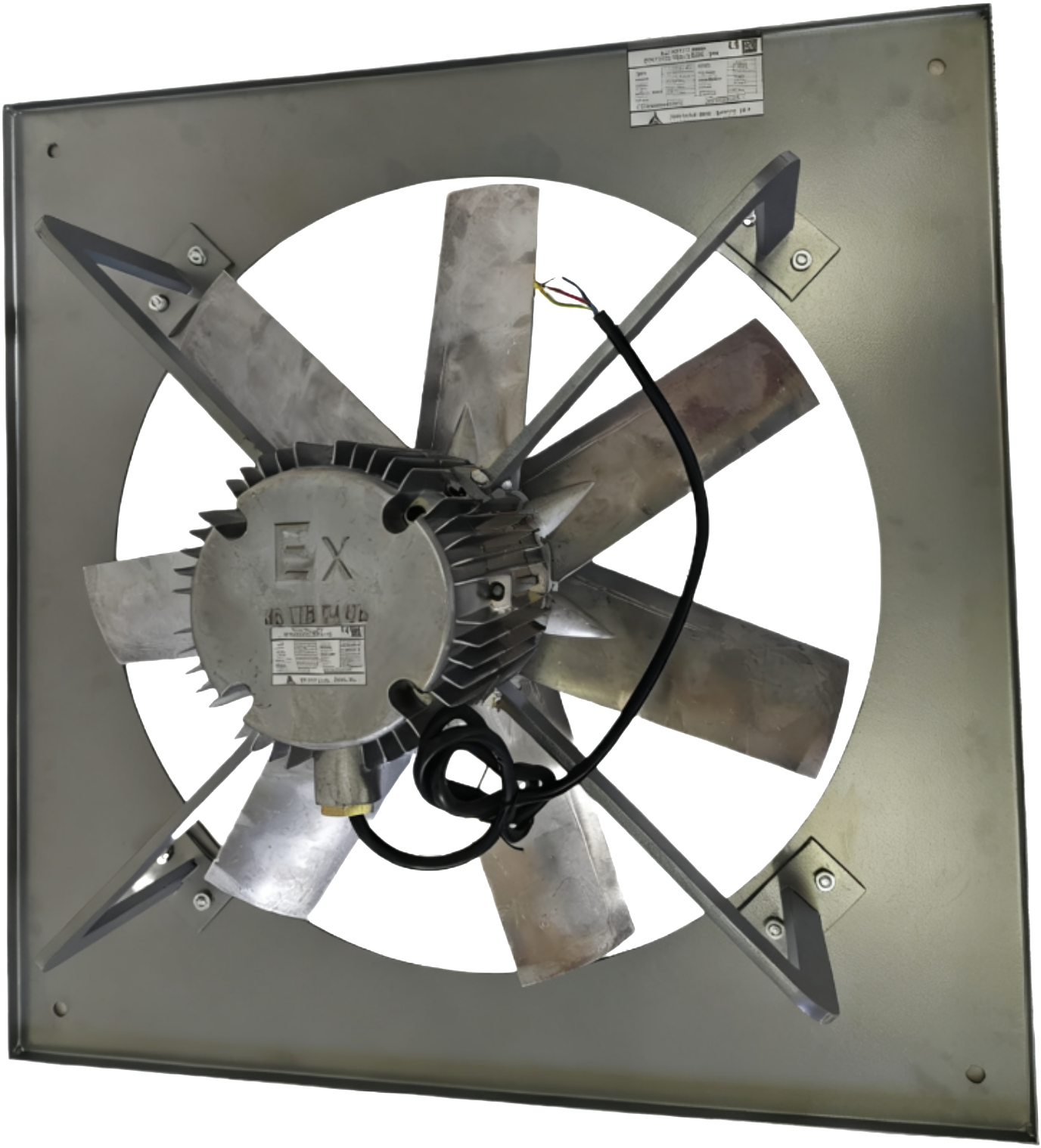

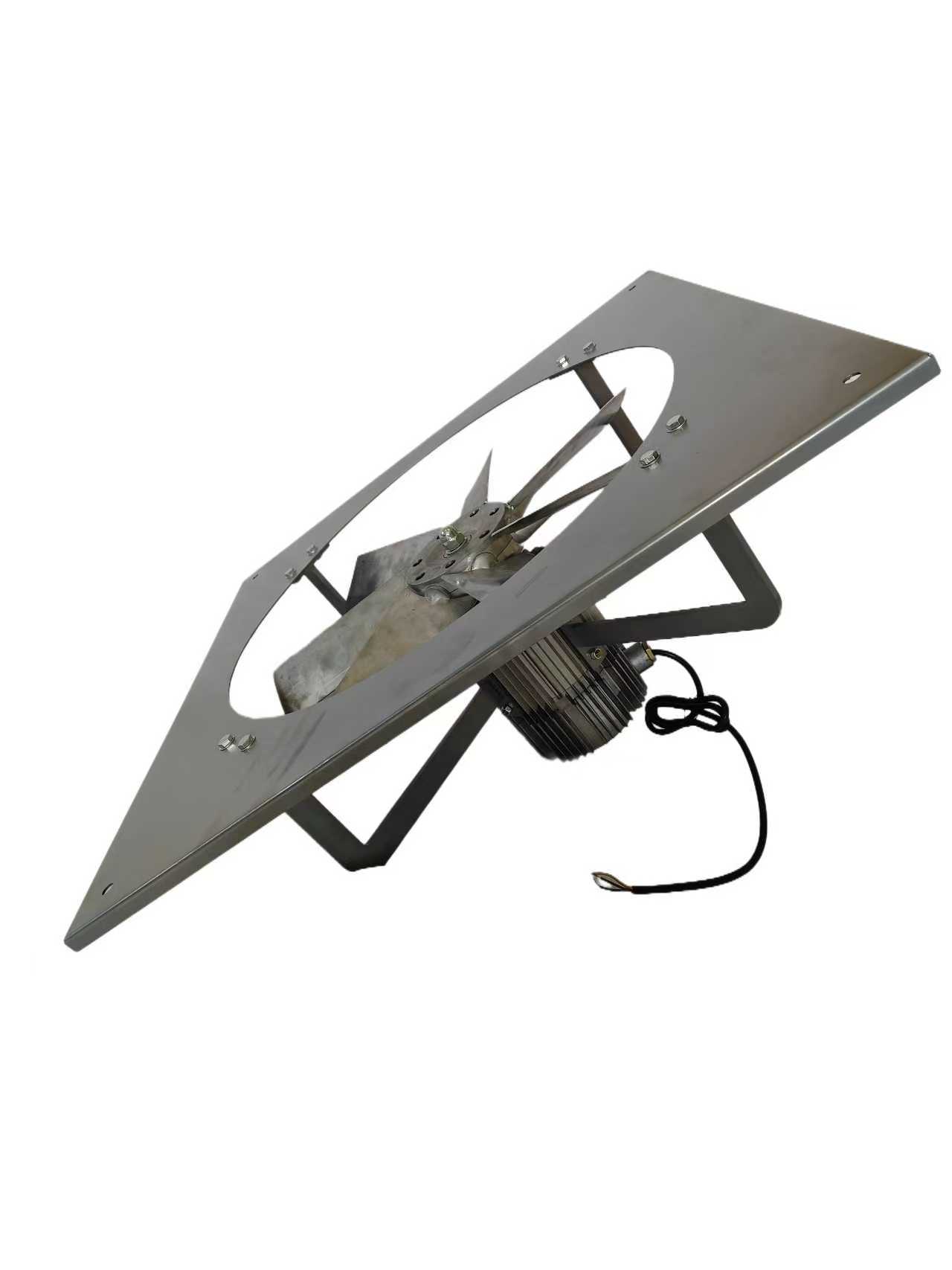

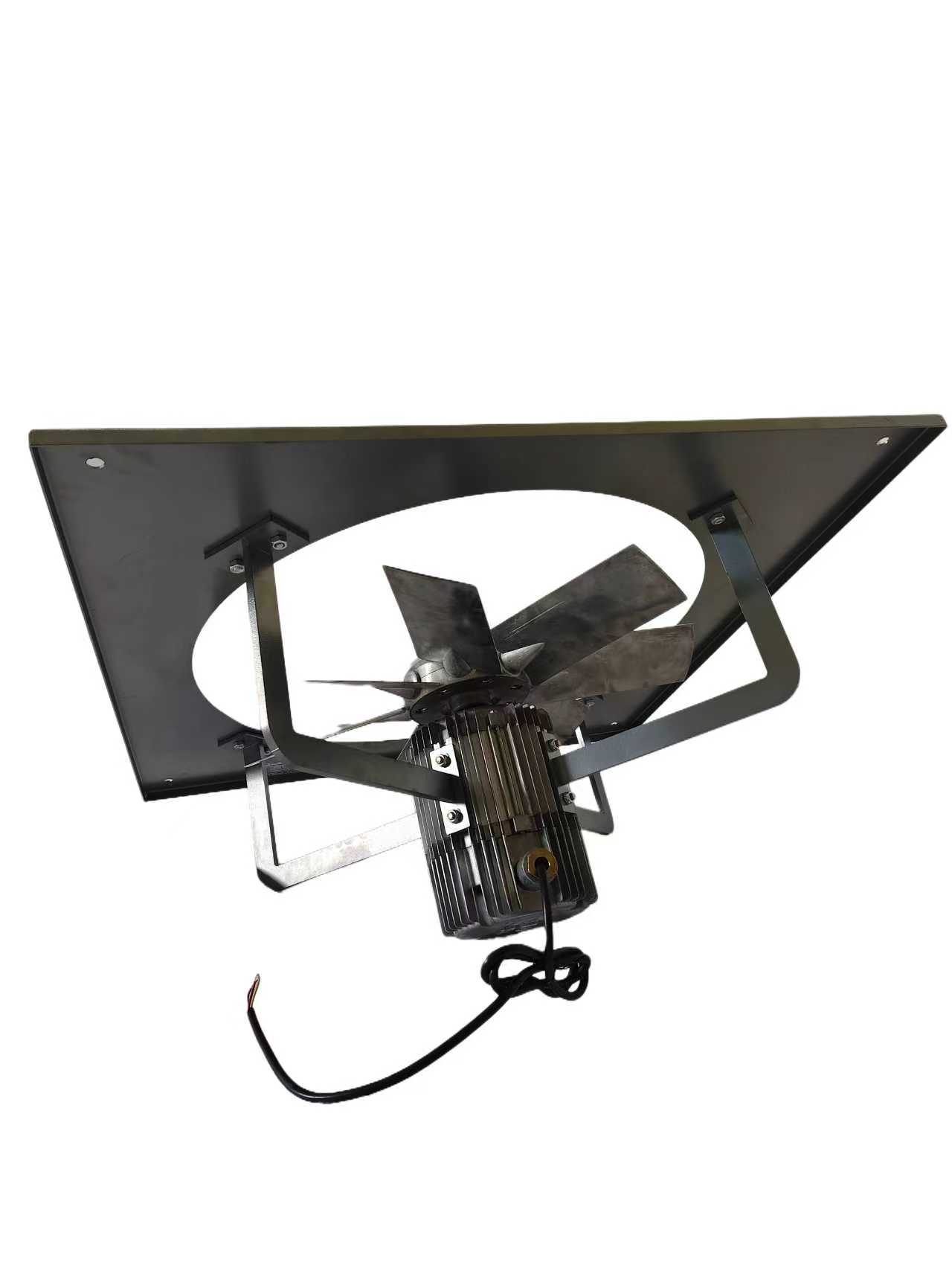

Industrial Exhaust Fan is a high-performance ventilation device designed primarily for large industrial spaces such as factories, warehouses, and kitchens. It effectively exhausts stale air, smoke, moisture, and dust. Its characteristics include large air volume, high structural strength, and excellent durability, enabling it to effectively improve air quality and ensure a safe production environment. The product is offered in two variants: standard and explosion-proof (Explosion-proof Classification: Ex db IIB T4 GB), designed to address the distinct safety specifications of diverse operational environments.

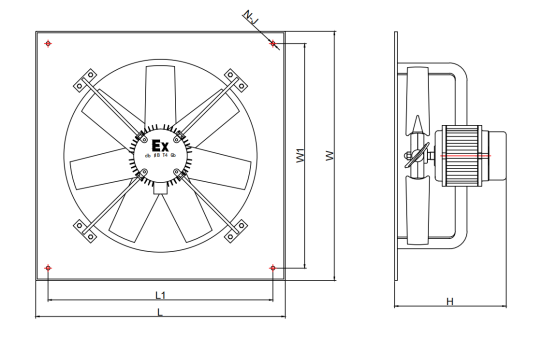

INSTALLATION DAIMENSION (mm):
| Model | L | L1 | W | W1 | H3 | N-J |
| DFV-E60 | 788 | 710 | 788 | 710 | 350 | 4-∅12 |
|
DFV-Ex-E60 (Explosion-proof ) |
788 | 710 | 788 | 710 | 350 | 4-∅12 |
FUNCTION PARAMETER LIST:
|
Model |
Diameter |
Blade |
V/Hz |
Power |
RPM |
M³/h |
Noise |
|
DFV-E60 |
∅610mm |
7pcs |
220V/50Hz |
230W |
720 |
3800 |
52dB |
|
DFV-Ex-E60 (Explosion-proof ) |
∅610mm |
7pcs |
220V/50Hz |
230W |
720 |
3800 |
52dB |
